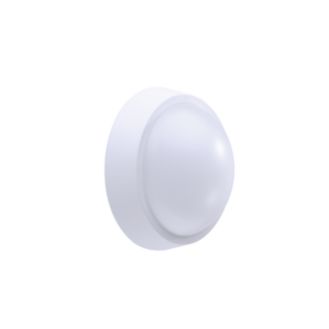

SIGNIFY PHILIP WT045C LED12/CW PSU CFW L1065 911401862780

Specifications

General information

Beam angle of light source	120 °
Light source color	740 neutral white
Number of gear units	1 unit
Driver/power unit/transformer	Power supply unit
Driver included	Yes
Optical cover/lens type	Polycarbonate bowl/cover
Luminaire light beam spread	100° x 120°
Control interface	-
Connection	Connection unit 2-pole
Protection class IEC	Safety class II

Glow-wire test	Temperature 650 °C, duration 30 s
Flammability mark	-
CE mark	CE mark
ENEC mark	-
Warranty period	1 years
Constant light output	No
Number of products on MCB of 16 A type B	-
EU RoHS compliant	No
Light source engine type	LED

Operating and electrical

Input Voltage	220 to 240 V
Input Frequency	50 or 60 Hz

Power Factor (Min)

0.5

Controls and dimming

Dimmable

No

Mechanical and housing

Housing Material	Polypropylene
Reflector material	Polycarbonate
Optic material	Polycarbonate
Optical cover/lens material	Polycarbonate
Fixation material	Polypropylene

Optical cover/lens finish	Opal
Overall height	76 mm
Overall diameter	170 mm
Color	White

Approval and application

Ingress protection code

IP65  [ Dust penetration-protected, jet-proof]

Mech. impact protection code

IK06  [ 1 J]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	960 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	80 lm/W
Init. Corr. Color Temperature	4000 K

Init. Color Rendering Index	>70
Initial chromaticity	SDCM<6
Initial input power	12 W
Power consumption tolerance	+/-10%

Over time performance (IEC compliant)

Median useful life L70B50

20000 h

Application conditions

Ambient temperature range

-30 to +35 °C

Maximum dim level

Not applicable

Product data

Full product code	871016333528599
Order product name	WT045C LED12/NW PSU CFW L1065
EAN/UPC - Product	8710163335285
Order code	911401735842
Numerator - Quantity Per Pack	1

Numerator - Packs per outer box	24
Material Nr. (12NC)	911401735842
Net Weight (Piece)	0.190 kg
