Description
Lamp family code | LED120
[ LED module 12000 lm]
|
Light source color | 740 neutral white
|
Light source replaceable | Yes
|
Number of gear units | 1 unit
|
Driver/power unit/transformer | Power supply unit regulating with constant light output
|
Driver included | Yes
|
Optical cover/lens type | Flat glass
|
Luminaire light beam spread | 160° - 42° x 54°
|
Control interface | -
|
Connection | 2 Push-in connector 5-pole
|
Cable | Cable 12 m without plug
|
Protection class IEC | Safety class II
|
Flammability mark | For mounting on normally flammable surfaces
|
CE mark | Yes
|
ENEC mark | ENEC plus mark
|
Warranty period | 5 years
|
Optic type outdoor | Distribution medium 11
|
Remarks | * At extreme ambient temperatures the luminaire might automatically dim down to protect components
|
Constant light output | Yes
|
Number of products on MCB of 16 A type B | 10
|
EU RoHS compliant | Yes
|
Light source engine type | LED
|
Service tag | Yes
|
Serviceability class | Class A, luminaire is equipped with serviceable parts (when applicable): LED board, driver, control units, surge protection device, optics, front cover and mechanical parts
|
Product family code | BGP292

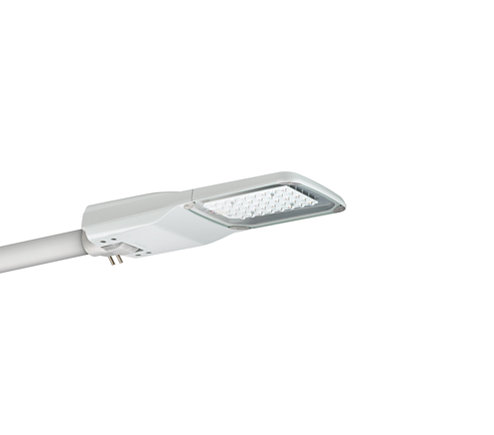

[ LumiStreet gen2 Mini]
|
Upward light output ratio | 0
|
Standard tilt angle posttop | 0°
|
Standard tilt angle side entry | 0°
|
Input Voltage | 220 to 240
V
|
Input Frequency | 50 to 60
Hz
|
Initial CLO power consumption | 70
W
|
Average CLO power consumption | 71
W
|
End CLO power consumption | 72
W
|
Inrush current | 47
A
|
Inrush time | 0.25
ms
|
Power Factor (Min) | 0.99
|
Dimmable | No
|
Housing Material | Aluminum die cast
|
Reflector material | Polycarbonate
|
Optic material | Polymethyl methacrylate
|
Optical cover/lens material | Glass
|
Fixation material | Aluminum
|
Mounting device | Side-entry for diameter 48 to 60 mm
|
Optical cover/lens shape | Flat
|
Optical cover/lens finish | Clear
|
Overall length | 620
mm
|
Overall width | 234
mm
|
Overall height | 95
mm
|
Effective projected area | 0.0251
m²
|
Color | Gray
|
Dimensions (Height x Width x Depth) | 95 x 234 x 620 mm
|
Ingress protection code | IP66
[ Dust penetration-protected, jet-proof]
|
Mech. impact protection code | IK08
[ 5 J vandal-protected]
|
Surge Protection (Common/Differential) | Luminaire surge protection level until 6 kV differential mode and 8 kV common mode
|
Sustainability rating | -
|
Initial luminous flux (system flux) | 10005
lm
|
Luminous flux tolerance |
