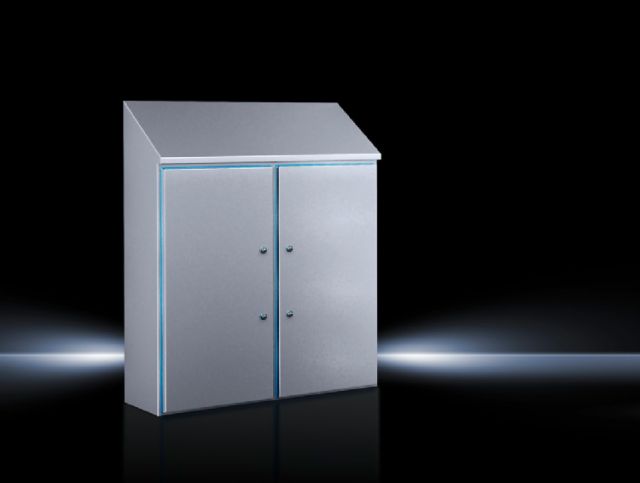

HD 1318.600 Hygienic Design Compact enclosure HD, two-door


Price:
₦1,567,870.56
request for quote

Description

Product description

Material Enclosure and doors:
Stainless steel 1.4301 (AISI 304)Mounting plate: Sheet steel, Lock insert HD: Stainless steel 1.4404 (AISI 316L)Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Surface finish Enclosure and door:
Brushed, grain 400, peak-to-valley height < 0.8 µm, Mounting plate: Zinc-plated, Seal: Blue, dyed (RAL 5010)
Protection category:
IP to IEC 60 529IP 66IP X9
IK CodeIK08
Supply includes:
Enclosure of all-round solid construction Door with inserted seal Mounting plate
Dimensions:
Width: 1,010 mm; Height (front): 1,050 mm; Height rear: 1,280 mm; Depth: 400 mm
Mounting plate: Width: 945 mm; Height: 975 mm
Door opening angle125°
Packs of1 pc(s)
Weight/pack: 82 kg
EAN: 4028177918535
Customs tariff number: 94032080
ETIM 7.0EC000261
ETIM 6.0EC000261
eCl@ss 8.0/8.127180101
eCl@ss 6.0/6.127180101
